$16,500.00
Drivable at full height
Variable speed, rear two wheel hydraulic drive
Dual holding brakes

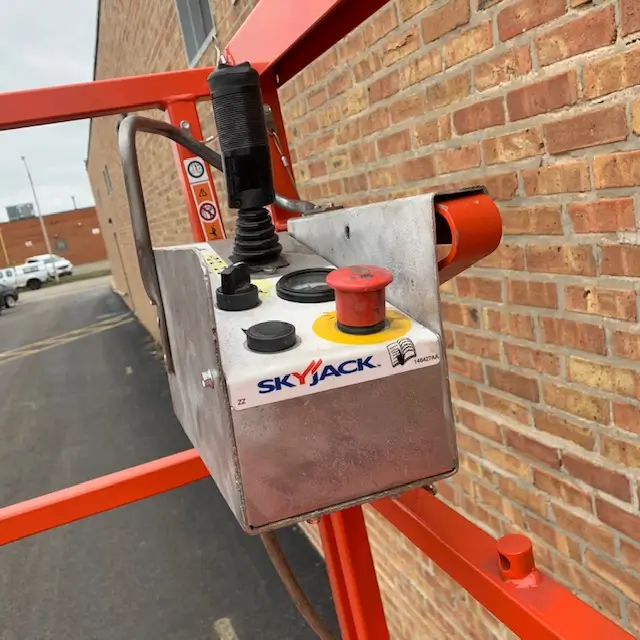

Proportional controls for drive & lift functions
4’ (1.22 m) Roll out extension deck
24V DC power source
Low voltage battery protection
Up to 30% Gradeability
Solid rubber, non-marking tires
Pothole protection system
110V AC outlet on platform with GFI
28 mph wind rating (12.5 m/s)
Tilt alarm with drive & lift cut-out
All motion audible alarm
Lanyard attachment points
Operator horn
Hinged railing system
Forklift pockets and tie down/lift lugs
Relay based control system
Color coded and numbered wiring system
Telematics ready

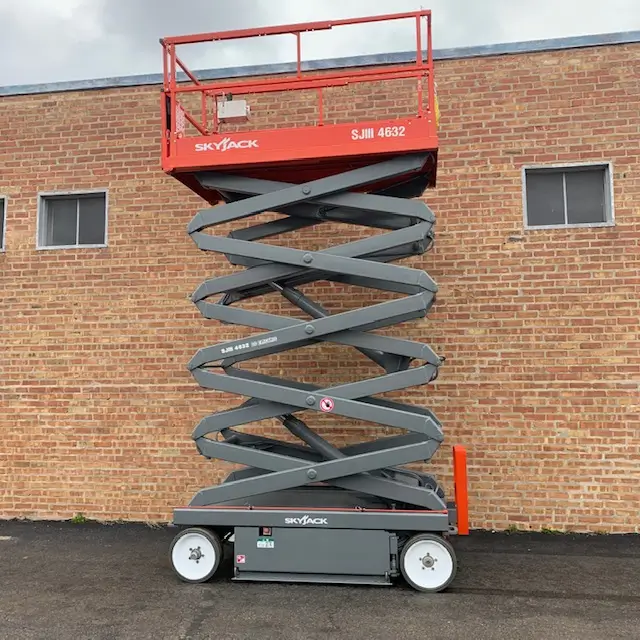

Work Height – 38’ (11.58 m)
Raised Platform Height – 32’ (9.75 m)
Lowered Platform Height – 48.5” (1.23 m)
Overall Width – 46” (1.17 m)
Overall Length – 91” (2.31 m)
Stowed Height (Rails Up) – 88” (2.24 m)
Stowed Height (Rails Down) – 74” (1.88 m)
Platform Width (Inside Dimension) – 42” (1.07 m)
Platform Length (Inside Dimension) – 84” (2.13 m)
Extension Deck (Roll Out) – 4’ (1.22 m)
Ground Clearance (Stowed) – 3.5” (8.89 cm)
Ground Clearance (raised) – 0.75” (1.91 cm)
Wheelbase – 69” (1.75 m)
Weight – 5,075 lbs (2,302 kg)
Gradeability – 25%
Turning Radius (Inside) – 47.5” (1.21 m)
Turning Radius (Outside) – 93.5” (2.37 m)
Lift Time (With Rated Load) – 59 sec
Lower Time (With Rated Load) – 49 sec
Drive Speed (Stowed) – 2 mph (3.2 km/h)
Drive Speed (Raised) – 0.6 mph (1 km/h)
Maximum Drive Height – Full Height
Capacity (Overall) – 700 lbs (318 kg)
Distributed Capacity (Main Platform) – 450 lbs (204 kg)
Distributed Capacity (Extension Deck) – 250 lbs (113 kg)
Local Floor Load (With Rated Load) – 220 psi (1517 kPa)
Overall Floor Load (With Rated Load) – 204 psf (10 kPa)
Maximum # of Persons – 2
Wind Rating – 28 mph (12.5 m/s)
Tire Type – Solid, N/M
Tire Size – 16 x 5 x 12
New batteries
New battery charger
New paint & decals
New tires
